PC75 Curtain Motor



Model	Torque(N.m)	Rated Power(w)	Rated Voltage(V)	Frequency(Hz)	Insulation Class	Protection Level
PC75	1.2	40	100-230	50/60	ClassF	IP20
PC75-WF	1.2	40	100-230	50/60	ClassF	IP20
PC75-ZB	1.2	40	100-230	50/60	ClassF	IP20
PC75-BT	1.2	40	100-230	50/60	ClassF	IP20





1.Description

The PC75 curtain motor can solve many problems such as hand-pulling and disassembling curtains on multiple floors. The opening and closing curtain is suitable for occasions with high requirements for window occlusion, such as bedrooms, living rooms, etc.





2. Application

PC75 Curtain Motor can be compatible with electric living room curtain and so on.





• Wide voltage design

• Smooth operation,low noise

• Built-in shock absorption device quiet structure

• Manual pulling function during power outage

• Automatic stop function when blocked,safe design

• Equipped with power-off travel memory function

• Hand-pulled start function

• Fabric rebound stroke correction function

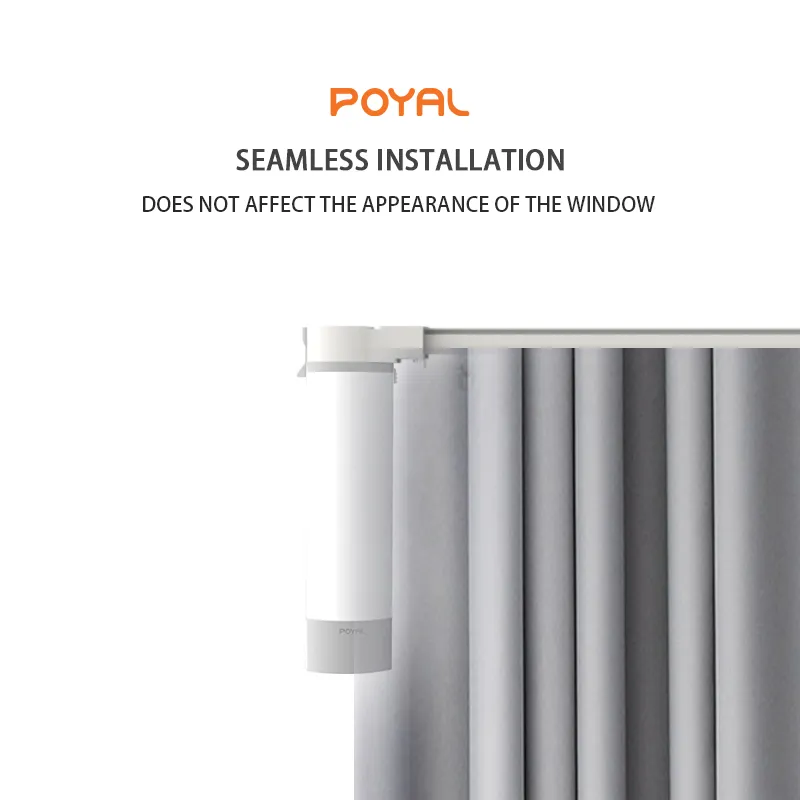

• Multiple installation methods such as inner buckle and outer buckle,Easy installation

• Besides the standard wireless remote control function,it can implement the replacement

of intelligent modules,making it easy to access various control methods such as 485,

smart WIFI Bluetooth,Zigbee,voice control,etc.





• WiFi
• Zigbee
• Bluetooth
• Lora
• Matter
• Zi-wave
• KNX
• RS485
• Dry contact





Our product comes with a five-year warranty, ensuring that our customers have peace of mind and can trust the quality of our product. We believe in the longevity and durability of our product, which is why we are confident in offering such an extensive guarantee.









1.Easy to installation

2.Smooth operating with low noise

3.Strict quality management system

4.Superior equipment

5.Professional services

6.OEM/ODM services

7.High quality products

1) Variety types for selection

2) Competitive price

3) Prompt delivery





How to install the motor?



Step 1: Gather Your Tools

Before you begin, you will need to gather a few basic tools. These include a wrench (or socket set), pliers, screwdrivers, and a set of wire strippers. You may also need additional tools depending on the type of motor you are installing.



Step 2: Remove the Old Motor

If you are replacing an old motor, you will need to remove it first. Begin by disconnecting the power supply and the wiring connections. Then, remove the screws or bolts holding the motor in place and pull it out of its housing.



Step 3: Mount the New Motor

Once the old motor is removed, it is time to mount the new one. Make sure to position the motor securely in its housing and tighten the screws or bolts firmly. Check and ensure that the motor is properly aligned and seated.



Step 4: Connect the Wiring

Next, connect the wiring to the new motor. Make sure to match the wires correctly and use wire connectors to secure the connections. If there are any loose connections, this can cause the motor to malfunction or fail.



Step 5: Test the Motor

After everything is connected, turn on the power supply and test the motor. Observe the motor as it runs to make sure it is working properly. If there are any issues or strange noises, turn off the power supply immediately and address the issue.



In conclusion, installing a motor is not complicated if you follow the correct steps. Always remember to take safety precautions and wear protective gear if necessary. We hope this guide helps you in installing your motor with confidence. If you want to know more, please contact our sales representative.
